1*8 1x8 Single Mode SM G657A SC/UPC PLC Fiber Optical LGX Splitters
Descriptions:
The PLC (Planar Lightwave Circuit) planar waveguide optical splitter is composed of an optical waveguide chip and optical fiber arrays coupling at both ends.
The Fiber Opical LGX Splitters uses semiconductor lithography technology to manufacture the optical splitter chip, with stable process, good output consistency, loss and optical wavelength Irrelevant, good channel uniformity, compact structure and small size.
The Fiber Opical LGX Splitters widely used in optical fiber communication lines of telecom operators, especially FTTX projects.
1x8 the Fiber Opical LGX Splitters can distribute or combine 1 optical signal into 8 outputs fibers.
Kocent Optec Limited PLC Passive Fiber Optic Splitter catalogy:
- Bare fiber type PLC Passive Fiber Optic Splitter
- Mini tube type PLC Passive Fiber Optic Splitter
- ABS box type PLC Passive Fiber Optic Splitter
- Rack mount type PLC Passive Fiber Optic Splitter
- LGX box type PLC Passive Fiber Optic Splitter
Product Features:
- Low insertion loss
- Low Polarization Dependent Loss
- Good channel-to-channel uniformity
- Wide Operating Wavelength: 1260~1650nm
- High Reliability and Stability
- Standard LGX Box can use for outdoor splitter box.
Insertion Loss:
- Test Wavelength: 1310-1550 nm
- Required Value: P Grade
- Test can be performed on any channel
Return Loss:
- Test Wavelength: 1310-1550 nm
- Required Value:>55dB
- Test can be performed on any channel
Directivity:
- Test wavelength: 1310-1550 nm
- Required Value:>55 dB
On Dependent Loss (PDL):
- Test Wavelength:1310-1550 nm
- Required Value:< 0.2 dB
Specification:
| Item | Unit | Technical Data |
| Description | - | 1x8 Fiber Opical LGX Splitters SC/UPC |
| Wavelength | nm | 1260-1650 |
| Insertion Loss | nm | ≤10.7 |
| Channel Uniformity | dB | ≤1.0 |
| Return Loss | dB | ≥50 |
| Directionality | dB | ≥55 |
| Polarization Dependent Loss | dB | ≤0.2 |
| Package Size | mm | 130*100*24 mm |
| Fiber Color | - | Blue Orange Green Brown or any color |
| Loose Tube Color | - | White |
| Maximum Power | mw | 300 |
| Operating Temperature | ℃ | -10~75 |
| Storage Temperature | ℃ | -40~85 |
| Fiber Type | - | G657A1 |
| Package Style | - | 10pcs /small carton |
| Packing Information | - | Big carton box: 100pcs
Size: 750*270*270mm
Weight: 15 kg |
Application:
- LAN
- CATV System
- FTTH Network
- FTTX Deployment
- Optical Signal Distribution
- Passive Optical Network(PON)
- Measuring System and Laser System
- DWDM and CWDM System
- Data Communications

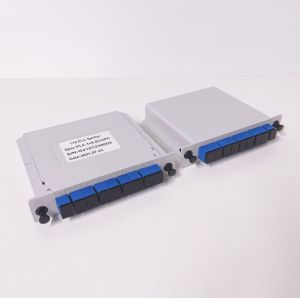

Product photos:
OEM/ODM Service:
If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.
Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
