1:2 1x2 1*2 Insertion Type Optical PLC LGX Passive Fiber Splitters
Descriptions:
The fiber optic splitters are designed for long-term reliability, superior performance.
The fiber optic splitters are designed for consistent performance, low optical Insertion loss, low polarization Dependent Loss, high reliability and stability, superior environmental and mechanical characteristics, and fast installation.
The fiber optic splitters also enable more effective monitoring and management of fiber optical networks.
This Plc Cassette Fiber Optic Lgx Splitter come with 1 input and 2 output with SCUPC Connector terminal.
It is a wide range of usage in fiber optics including optical transmission, long haul, subscriber loop, fiber to the home, telecommunications, CATV, test equipment, optical fiber sensors, data communications and wide-area network.
Kocent Optec Limited supply high perfomance Fiber Optic PLC Splitter with 1*N and 2*N type.
Feature:
- High Channel counts
- Wide wavelength range
- Various coupling ratio
- Environment stable
- Low insertion loss and low PDL
- High Reliability and Stability
- Single-mode and multimode available
- Customized packaging and configuration
Applications:
- PON, GPON
- FTTx Construction
- Fiber Optical communication system
- Fiber Optical access networks
- Fiber Sensor
- Fiber CATV networks
- Local area networks
Specification: (without connector)
2*N:
| Parameter | Unit | Specification (P Grade) |
| Operation Wavelength | nm | 1260~1650 |
| Channel Number | | 2x2 | 2x4 | 2x8 | 2x16 |
| Insertion Loss with Connector (Max) | dB | 4.4/4.6 | 7.7/8.1 | 10.8/11.3 | 14.1/14.4 |
| Insertion Loss without Connector (Max) | dB | 4.1/4.3 | 7.4/7.8 | 10.5/11 | 13.8/14.1 |
| Uniformity (Max.) | dB | 0.6 | 0. 7 | 0.8 | 1.0 |
| Polarization Dependent Loss | dB | 0.2 | 0.2 | 0.2 | 0.3 |
| Return Loss | dB | ≥50(UPC); 60(APC) |
| Directivity | dB | ≥55 |
1*N
| Parameter | Unit | Specification (P Grade) |
| Operation Wavelength | nm | 1260~1650 |
| Channel Number | | 1x2 | 1x4 | 1x8 | 1x16 |
| Insertion Loss with Connector (Max) | dB | 4.1/4.4 | 7.4/7.9 | 10.5/11.0 | 13.8/14.1 |
| Insertion Loss without Connector (Max) | dB | 3.8/4.1 | 7.1/7.6 | 10.2/10.7 | 13.5/13.8 |
| Uniformity (Max.) | dB | 0.6 | 0. 7 | 0.8 | 1.0 |
| Polarization Dependent Loss | dB | 0.2 | 0.2 | 0.2 | 0.3 |
| Return Loss | dB | ≥ 50(UPC); 60(APC) |
| Directivity | dB | ≥55 |

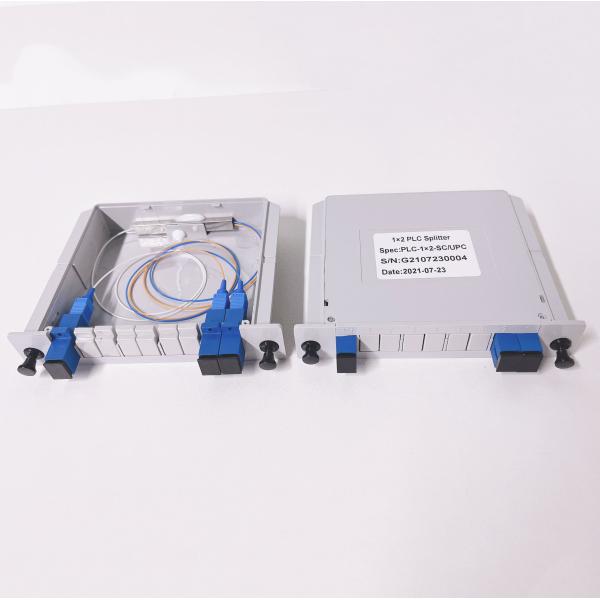

Product photos:
OEM/ODM Service:
If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.
Packing:
According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
